H 531-06 CS

Technical data

function Centre position closed, with spring return

Model series VH10

Thread G 1/8"

flow [l/min] 450

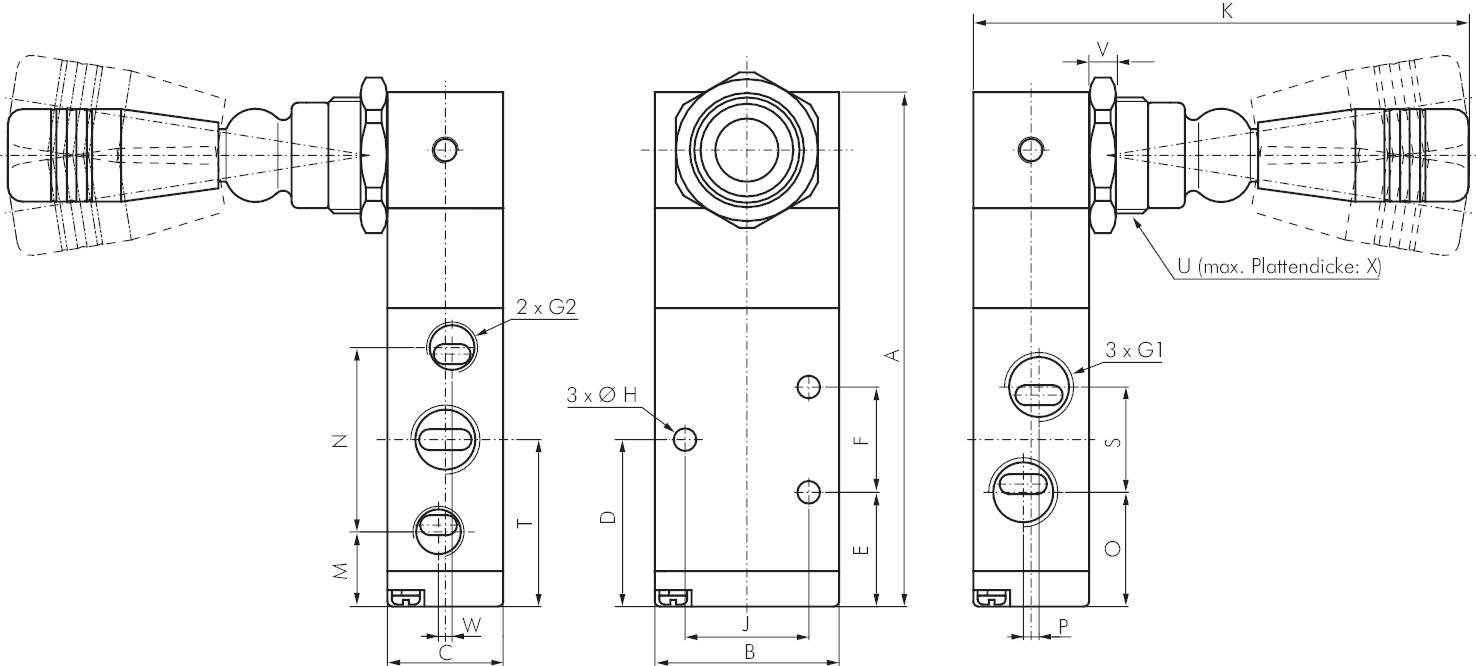

A [mm] 84,7

B [mm] 27

C [mm] 18

D [mm] 28,2

E [mm] 21,2

F [mm] 14

G1 G 1/8"

G2 G 1/8"

H [mm] 3,3

J [mm] 19

K [mm] 93

M [mm] 14,2

N [mm] 28

O [mm] 20,2

P [mm] 3

S [mm] 16

T [mm] 28,2

U M 22 x 1.5

V [mm] 5

W [mm] 2

X [mm] 4,0

Weight 195 g / pc.
