Exempel på hona Exempel på hane/plugg Storleksangivelse hydraulkoppling
Materials:
zinc plated steel, seal: NBR
Temperature range:
-20°C bis +100°C
Advantages:
•streamlining design of the flow rate range, •push-Pull design: Coupling can be decoupled by pushing or pulling the sleeve.
*not standardized following ISO 7241-1 A
Hydraulkoppling inv gänga, ISO 7241-1 A

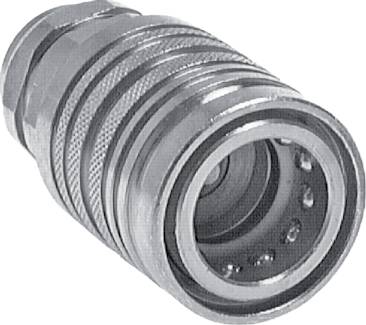

410627.1 *
Koppling ISO 7241-1A, hona storlek.1, G 1/4" (inv)
410822.2 T
Koppling ISO 7241-1A, hona storlek. 2T, M 18 x 1.5 (inv)
410827.2 A *
Koppling ISO 7241-1A, hona storlek. 2A, G 3/8" (inv)
410827.2 T
Koppling ISO 7241-1A, hona storlek. 2T, G 3/8" (inv)
410827.3
Koppling ISO 7241-1A, hona storlek. 3, G 3/8" (inv)
411022.3
Koppling ISO 7241-1A, hona storlek. 3, M 22 x 1.5 (inv)
411022.3 UNIMOG
Koppling ISO 7241-1A, hona storlek. 3, M 22 x 1.5 (inv)
411027.3
Koppling ISO 7241-1A, hona storlek. 3, G 1/2" (inv)
411327.4
Koppling ISO 7241-1A, hona storlek. 4, G 3/4" (inv)
411622.6
Koppling ISO 7241-1A, hona storlek. 6, M 30 x 1.5 (inv)
411627.6
Koppling ISO 7241-1A, hona storlek. 6, G 1" (inv)

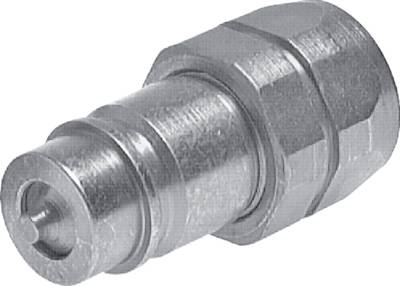

410637.1 *
Koppling ISO7241-1A, hane storlek.1, G 1/4"(inv)
410632.2 T
Koppling ISO7241-1A, hane storlek.2T, M 16 x 1.5 (inv)
410832.2 T
Koppling ISO7241-1A, hane storlek.2T, M 18 x 1.5 (inv)
410837.2 A *
Koppling ISO7241-1A, hane storlek. 2A, G 3/8" (inv)
410837.2 T
Koppling ISO7241-1A, hane storlek. 2T, G 3/8" (inv)
410837.3
Koppling ISO7241-1A, hane storlek. 3, G 3/8" (inv)
411032.3
Koppling ISO7241-1A, hane storlek. 3, M 22 x 1.5 (inv)
411037.3
Koppling ISO7241-1A, hane storlek. 3, G 1/2" (inv)
411337.4
Koppling ISO7241-1A, hane storlek. 4, G 3/4" (inv)
411632.6
Koppling ISO7241-1A, hane storlek. M 30 x 1.5 (inv)
411637.6
Koppling ISO7241-1A, hane storlek. 6, G 1" (inv)
